Front A/C Display Control Head -E87- / CLIMATRONIC Control Module -J255-

WARNING: This page is about a different variant/trim than selected.

NOTE:

The Climatronic control module and the Front A/C display control head are a single unit and cannot be disassembled.

Removing

-- Remove the trim in the center of the instrument panel. Refer to Removal and Installation .

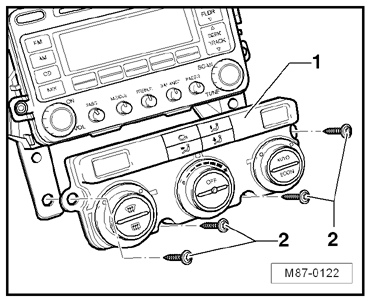

Fig 1: Identifying A/C Control Head E87 Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2- and the Front A/C display control head -1-.

-- Disconnect the connectors from the Front A/C display control head.

Installing

Install in reverse order of removal.
