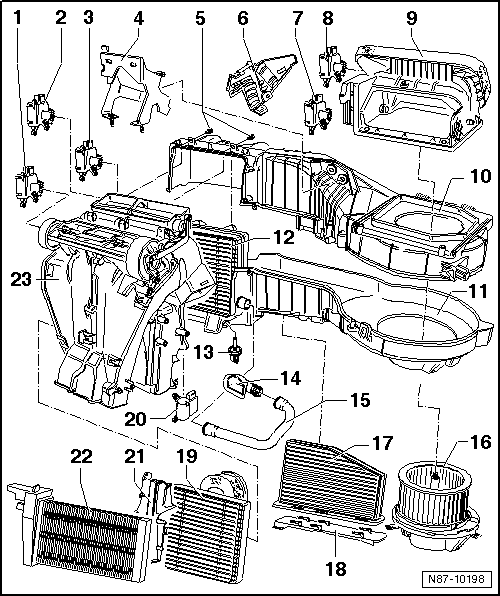

Heater And A/C Unit, CLIMATRONIC
WARNING: This page is about a different variant/trim than selected.
- Central Air Door Motor -V70-
- Check using Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Removing and installing, refer to CENTRAL AIR DOOR MOTOR -V70- .
- Replacing: perform a basic setting with the Vehicle Diagnosis, Testing and Information System VAS 5051B, refer to CLIMATRONIC A/C SYSTEM COMPONENTS, CHECKING AND ADJUSTING .
- Left Temperature Door Motor -V158-
- Check using Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Removing and installing, refer to LEFT TEMPERATURE DOOR MOTOR -V158- .
- Replacing: perform a basic setting with the Vehicle Diagnosis, Testing and Information System VAS 5051B, refer to CLIMATRONIC A/C SYSTEM COMPONENTS, CHECKING AND ADJUSTING .
- Defroster Door Motor -V107-
- Check using Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Removing and installing, refer to DEFROSTER DOOR MOTOR -V107- .
- Replacing: perform a basic setting with the Vehicle Diagnosis, Testing and Information System VAS 5051B, refer to CLIMATRONIC A/C SYSTEM COMPONENTS, CHECKING AND ADJUSTING .
- Bracket
- Screws
- Bolts must be unscrewed to separate air distributor and evaporator housing.
- Cover
- Fresh/Recirculating Air Door Motor -V154-
- Check using Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Removing and installing, refer to FRESH/RECIRCULATION AIR DOOR MOTOR -V154- / -V425- .
- Replacing: perform a basic setting with the Vehicle Diagnosis, Testing and Information System VAS 5051B, refer to CLIMATRONIC A/C SYSTEM COMPONENTS, CHECKING AND ADJUSTING .
- Airflow Door Motor -V71-
- Check using Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Removing and installing, refer to AIRFLOW DOOR MOTOR -V71- .
- Replacing: perform a basic setting with the Vehicle Diagnosis, Testing and Information System VAS 5051B, refer to CLIMATRONIC A/C SYSTEM COMPONENTS, CHECKING AND ADJUSTING .
- Housing For Air Entry
- With recirculating air door.
- With air flow door (Climatronic).
- Upper Section Of Evaporator Housing
- Disassembling and assembling evaporator housing, refer to EVAPORATOR HOUSING .
- Lower Section Of Evaporator Housing
- Disassembling and assembling evaporator housing, refer to EVAPORATOR HOUSING .
- Evaporator
- Removing and installing, refer to EVAPORATOR .
- Evaporator Temperature Sensor -G308-
- Check using Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Removing and installing, refer to EVAPORATOR TEMPERATURE SENSOR -G308- .
- Connection For Glove Compartment Cooling
- Coolant Hose For Glove Compartment Cooling
- Fresh Air Blower -V2- With Fresh Air Blower Series Resistor With Fuse -N24-
- Check using Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Removing and installing, refer to FRESH AIR BLOWER -V2- .
- Dust And Pollen Filter
- With activated charcoal filter.
- Removing and installing, refer to FRESH AIR BLOWER -V2- .
- Cover
- For dust and pollen filter.
- Heat Exchanger
- After replacing heater core, replace all the coolant. Refer to [For transmission(s) 0A4, 09G] [For engine(s) CBTA, CBUA] General Information or refer to [For transmission(s) 02E, 02Q] [For engine(s) CJAA] General Information .
- Heat Exchanger, removing and installing, refer to HEAT EXCHANGER .
- Right Temperature Door Motor -V159-
- Check using Vehicle Diagnosis, Testing and Information System VAS 5051B.
- Removing and installing, refer to RIGHT TEMPERATURE DOOR MOTOR -V159- .
- Replacing: perform a basic setting with the Vehicle Diagnosis, Testing and Information System VAS 5051B, refer to CLIMATRONIC A/C SYSTEM COMPONENTS, CHECKING AND ADJUSTING .
- Heater Core Trim
- Auxiliary Heater Heating Element -Z35-
- Only installed on vehicles with Diesel engine without auxiliary water heater.
- Removing and installing, refer to AUXILIARY AIR HEATER HEATING ELEMENT -Z35-, VEHICLES THROUGH 1K-7M 119 726 or AUXILIARY HEATER HEATING ELEMENT -Z35-, VEHICLES FROM 1K-7M 119 727 .
- Air Distribution Housing
