CLIMATRONIC A/C Display Control Head Overview

WARNING: This page is about a different variant/trim than selected.

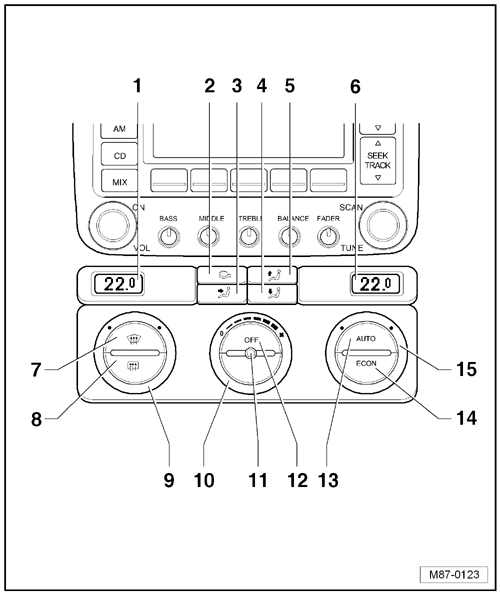

Fig 1: Identifying Climatronic A/C Display Control Head Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Display Of Selected Interior Temperature, Left Side
Recirculating Air Mode Button
- Press button for recirculating air function to prevent polluted air from entering interior.
Center Air Distribution Button
Lower Air Distribution Button
Upper Air Distribution Button
Display Of Selected Interior Temperature, Right Side
Windshield Defrost Button
Push Button For Rear Window Defroster
Left Interior Temperature Knob
Blower Regulator
- Changed blower speed by turning.
Interior Temperature Sensor
Push Button For Heating, Ventilation and A/C Operation
AUTO Button
- By pressing the AUTO button, Climatronic maintains the selected vehicle interior temperature completely automatically. With this setting the vent air temperature, the blower speed and the air distribution are controlled automatically.
ECON Button
- By pressing the ECON button, A/C compressor is set to almost zero delivery. The heating and ventilation operation continues to be controlled electronically.
Right Side Interior Temperature Control
