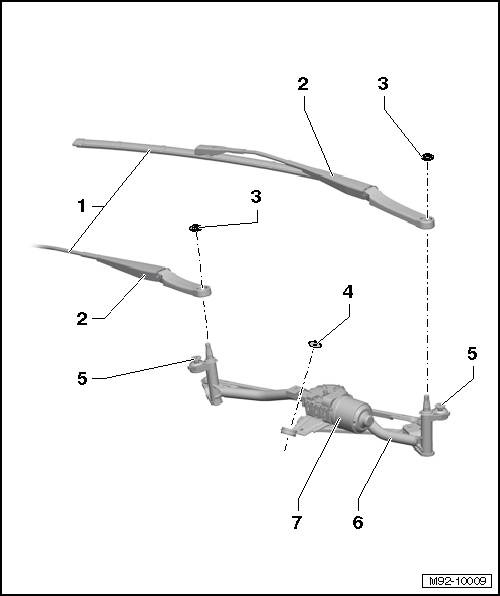

Windshield Wiper System Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Joint-Free Windshield Wiper
- Removal and installation, refer to WIPER BLADE, REPLACING
- Park position, adjusting, refer to WINDSHIELD WIPER ARMS, ADJUSTING
- Wiper Arms
- Removal and installation, refer to WINDSHIELD WIPER ARM
- Service position, refer to WIPER, MOVING INTO SERVICE POSITION
- Nut
- 20 Nm
- Quantity: 2
- Nut
- 5 Nm
- Bolt
- 8 Nm
- Quantity: 2
- Wiper Frame with Linkage
- Removal and installation, refer to WIPER FRAME WITH LINKAGE AND Windshield Wiper Motor -V-
- Windshield Wiper Motor -V- With Wiper Motor Control Module -J400-
- Removal and installation, refer to Windshield Wiper Motor -V-
- Wiper Motor Control Module -J400- coding/deactivating the alternating park position function, refer to WIPER MOTOR ALTERNATING PARK POSITION FUNCTION, DEACTIVATING
No Illustration
- Windshield Wiper Motor -V- bolts for the wiper frame with linkage: 8 Nm
- Windshield Wiper Motor crank to Windshield Wiper Motor shaft: 18 Nm
