Telephone Microphone -R38-, CONVERTIBLE: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the Front Interior Lamp -W1-. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) CVCA, CPRA, CPKA, CPLA, CJAA, CBUA, CPPA, CCTA, CBFA] Remote Key, Checking .

-- Release and disconnect the connector -1-.

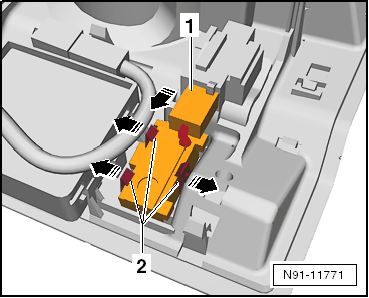

Fig 1: Identifying Telephone Microphone With Hook And Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the hooks -2- in the direction of the -arrow- and remove the Telephone Microphone -R38- from the Front Interior Lamp -W1-.
