IPHONE® BASEPLATE: Removing
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Remove the iPhone® bracket and iPhone® bracket adapter cable. Refer to Removal and Installation .
Removing the contact plate for iPhone® bracket

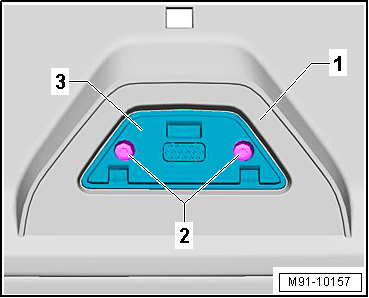

-- Remove screws -2- and pull the contact plate -3- along with the remaining adapter cable upward and out from the instrument panel -1-.
