Subwoofer -R211-: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition and all electrical consumers and remove the ignition key.

-- Open the rear lid.

-- Remove the upper flap.

-- Remove the bolts -arrow-.

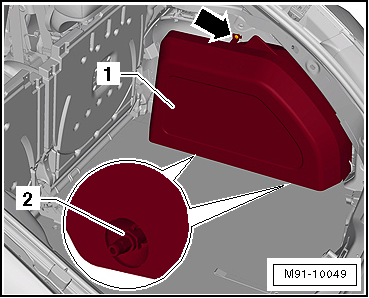

Fig 1: Identifying Subwoofer And Mounts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the Subwoofer -R211- -1- upward from the mounts -2- and disconnect the connector.

-- Remove the Subwoofer -R211- from the luggage compartment.
