Left/Right Front Treble Speaker -R20- / -R22-: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition and all electrical consumers and remove the ignition key.

-- Remove the front door trim panel. Refer to Removal and Installation .

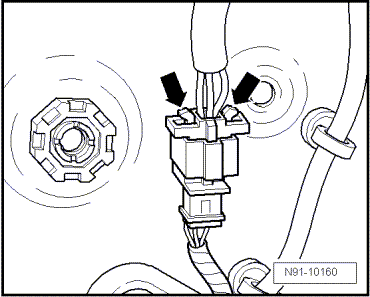

-- Unlock and disconnect the connector inside the wire to the speaker -arrows-.

Fig 1: Disconnecting Electrical Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

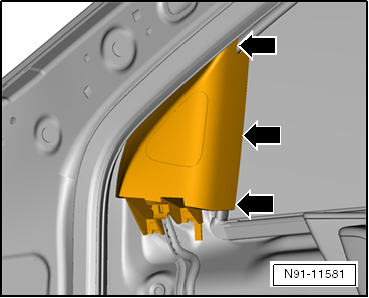

-- Unclip the trim with the speaker -arrows-.

Fig 2: Identifying Trim With Speaker

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If the plastic clip remains on the trim, remove it and insert it into the door.

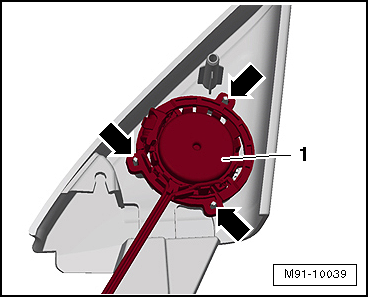

The speaker -1- is attached permanently to the triangle trim at 3 points -arrows-. It can only be removed with the trim.

Fig 3: Identifying Speaker

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
