External Audio Source Connection -R199-, USB PORT: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition and all electrical consumers and remove the ignition key.

-- Remove the front center console insert. Refer to Removal and Installation .

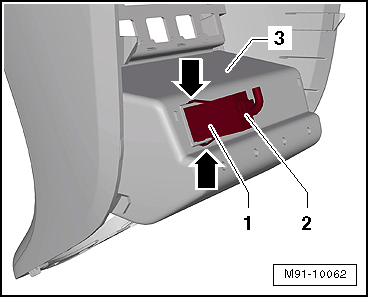

-- Squeeze the clips -arrows- on the External Audio Source Connection -R199- -1- together and remove the External Audio Source Connection -R199- -1- from the front cover -3-.

Fig 1: Identifying External Audio Source Connection And Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector -2-.
