Left Antenna Module -R108-, COUPE: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition and all electrical consumers and remove the ignition key.

-- Remove rear lid trim panel. Refer to Removal and Installation .

-- Release and disconnect the connectors -3- and -4-.

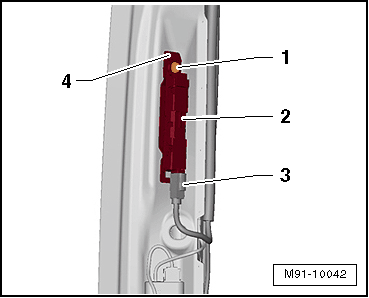

Fig 1: Identifying Screw, Left Antenna Module And Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screw -1- and then remove the Left Antenna Module -R108- -2- from the rear lid.
