OVERVIEW - External Audio Source Connection -R199-, USB PORT, UF6

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

The External Audio Source Connection -R199- (USB port) works with the Radio/Rns by the USB connection on the back side (Radio/Rns-China).

External devices with a USB connection (MP3 player, iPod®, smartphones) can connect to the External Audio Source Connection -R199- (USB port) by using a corresponding adapter cable. The audio files will then be transmitted through the sound system.

For further information, refer to the Owner's Manual

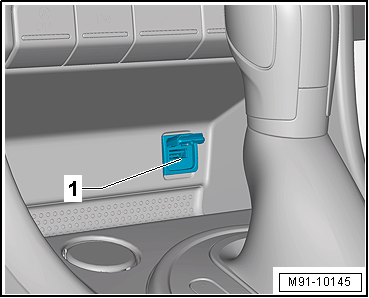

Fig 1: External Audio Source Connection -R199- Component Location, USB Port
GWWM91-10145Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The External Audio Source Connection -R199- -1- is installed in the front center console.
