Connector Assignments, RNS 510: Notes

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

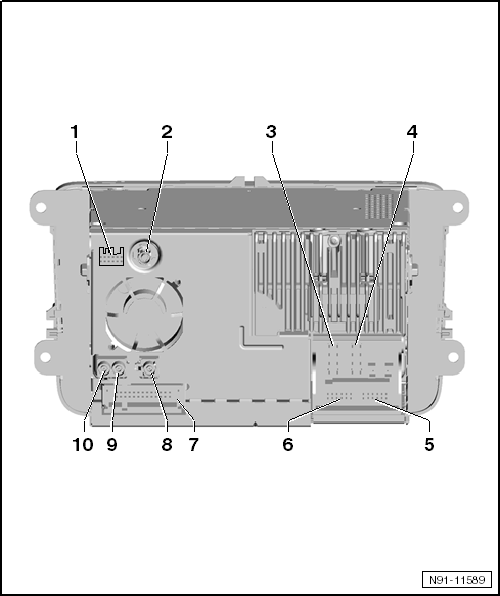

Fig 1: Identifying Connector Overview (RNS 510)
GWWN91-11589Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Navigation Connection, Japan
    • Not Assigned
  2. Antenna Connection
  3. Multi-Pin Connector 1, 8-pin, Speaker Outputs
  4. Multi-Pin Connector 2, 8-pin, CAN Bus, Power Supply
  5. Multi-Pin Connector 3, 12-pin, Telephone
  6. Multi-Pin Connector 4, 12-pin, External Audio Source Connection -R199- /Multimedia System Control Module -J650-
  7. 26-Pin Connector 5, Video and LF Input
  8. Antenna Connection
  9. Antenna Connection
  10. Antenna Connection
