Cooling Output Temperature, Checking: Checking

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Close the hood.

-- Measure the ambient temperature.

-- Close doors, window and sunroof.

-- Open all instrument panel vents.

-- Set the A/C system temperature to "cold".

-- Set the air distribution to the center vent.

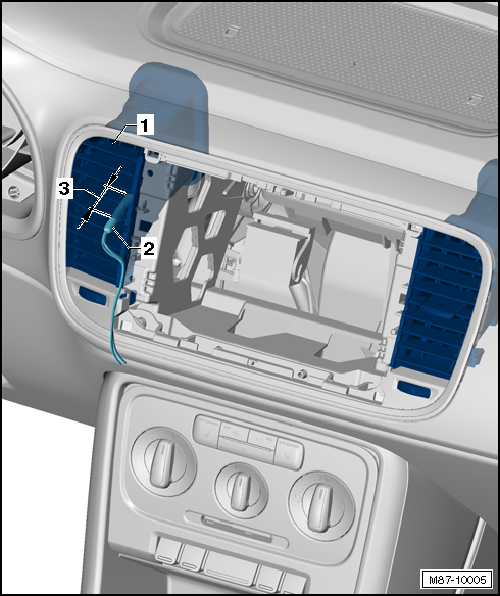

-- Keep the temperature sensor -2- approximately 20 mm -3- into the shown air vent -1- area.

Fig 1: Identifying Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn on the A/C system by pressing the AC button.

-- Start the engine.

NOTE: Start of time measurement (five minutes).

-- Bring engine speed to 2, 000 RPM and hold it there.
