Pin Assignment On Back Of Display Control Head (Electric Manual A/C System)

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Test Box Kit - Basic Test Box V.A.G 1598/14
Test Box Kit - Adapter 47 V.A.G 1598/47
Template V.A.G 1598/47-2

NOTE: Due to different equipment levels, use the current wiring diagram to locate the exact assignment of the individual connector positions and pin assignments. Refer to Wiring diagrams, Troubleshooting & Component locations.

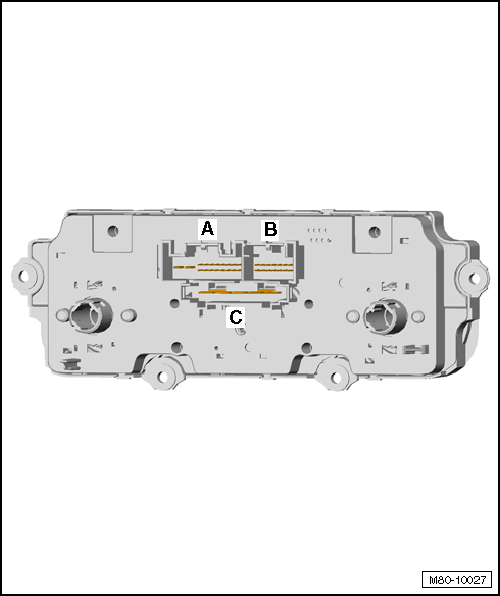

Fig 1: Identifying 20-Pin Connector, 16-Pin Connector And 5-Pin Blower Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A -
20-Pin Connector
- Due to different equipment levels, use the current wiring diagram to locate the connector and pin assignments. Refer to Wiring diagrams, Troubleshooting & Component locations.
B -
16-Pin Connector
- Not assigned
C -
5-Pin Blower Connector
- Use the current wiring diagram to find the connector and pin assignments. Refer to Wiring diagrams, Troubleshooting & Component locations.
