Relay Panel On Vehicle Electrical System Control Module -J519-

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

The relay panel on the Vehicle Electrical System Control Module -J519- is attached to the instrument panel central tube and cannot be removed without removing the instrument panel.

The individual relay sockets can be removed without having to remove the relay panel.

Removal

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Open the fuse panel door on the driver side.

-- Remove the relay from the relay panel.

NOTE:

The number of relays is dependent on vehicle equipment.

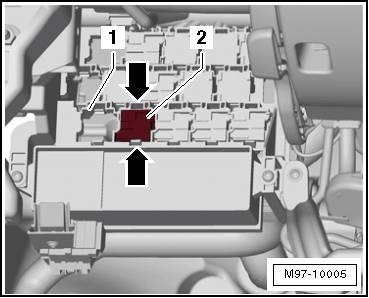

-- Clip the tabs -arrows- toward the outside and push the connector -2- through the relay panel -1-.

Fig 1: Identifying Relay Panel Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

Install in reverse order of removal.
