Subwoofer -R211-

The Subwoofer -R211- is attached to the rear shelf from inside the luggage compartment.

Removing

-- Switch off the ignition and all electrical consumers and remove the ignition key.

-- Open the luggage compartment.

-- Disengage the connector -3- and disconnect.

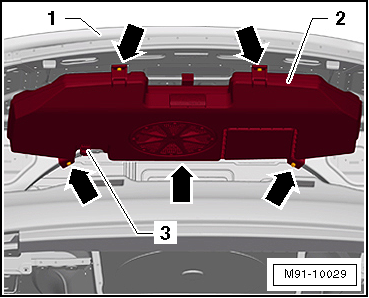

Fig 1: Identifying Subwoofer In Rear Shelf -2- Of Luggage Compartment -1- And Bolts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

If the Subwoofer -R211- starts to fall down after removing the first bolt, then the mounting tabs still connected will get damaged. Have a second technician hold the Subwoofer -R211- to keep it from falling down.

-- Remove the bolts -arrows-.

Fig 2: Identifying Subwoofer In Rear Shelf -2- Of Luggage Compartment -1- And Bolts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Subwoofer -R211- -2- from the luggage compartment -1-.

Installing

Install in reverse order of removal.

CAUTION:

If the Subwoofer -R211- starts to fall down after installing the first bolt, then mounting tabs still connected will get damaged. Have a second technician hold the Subwoofer -R211- to keep it from falling down.

Tightening Specifications

Refer to SOUND SYSTEM COMPONENT LOCATION .
