Rear Treble Speaker -R14- / -R16-
The Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16- are the back of the door trim panel.
Removing and installing on the left and right sides is identical.
Removing
-- Switch off the ignition and all electrical consumers and remove the ignition key.
-- Remove the rear door trim panel, refer to Description and Operation .
-- Disengage the connector and disconnect.

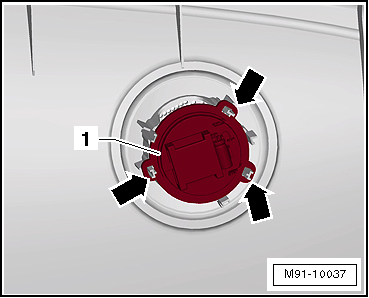

The speaker -1- is attached permanently to the door trim at three points -arrows-. It can only be removed with the door trim.
Installing
Install in reverse order of removal.
