Rear Bass Speakers -R15- / -R17-

The Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17- are installed in the rear doors.

Removing and installing on the left and right sides is identical.

Removing

-- Switch off the ignition and all electrical consumers and remove the ignition key.

-- Remove the rear door trim panel, refer to Description and Operation .

-- Unlock and disconnect the connector -arrows-.

Fig 1: Identifying Electrical Connection Lock

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drill out the rivets -arrows- and remove the speaker.

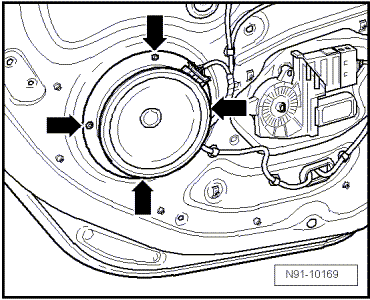

Fig 2: Identifying Rear Door Loudspeaker Fasteners (Rivets)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Always remove any shavings resulting from the drilling, otherwise they may cause corrosion damage later.

If the paint on the door frame gets damaged during drilling, touch-up immediately.

Installing

-- There are special blind rivets for installing the new speaker.

Install in reverse order of removal.
