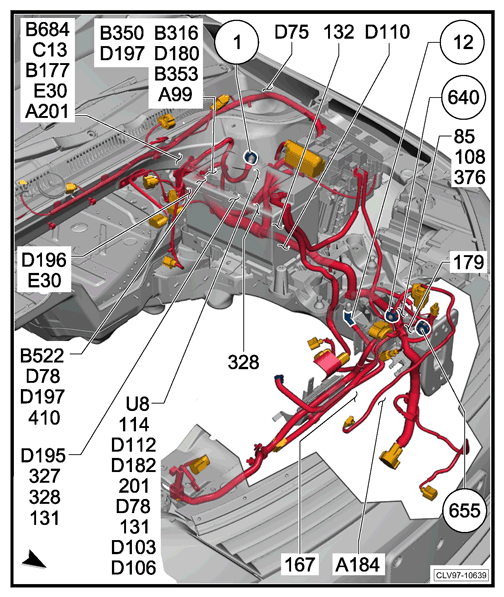

Engine Compartment, Driver II
1 - Ground strap, battery to body
12 - Ground connection in engine compartment, left
85 - Ground connection 1 (in engine compartment wiring harness)
108 - Ground connection 2 (in left front wiring harness)
114 - Ground connection (in automatic Transmission wiring harness)
131 - Ground connection 2 (in engine compartment wiring harness)
132 - Ground connection 3 (in engine compartment wiring harness)
167 - Ground connection 4 (in engine compartment wiring harness)
179 - Ground connection (in left headlamp wiring harness)
201 - Ground connection 5 (in engine compartment wiring harness)
327 - Sensor ground connection (in engine compartment wiring harness)
328 - Sensor ground connection 2 (in engine compartment wiring harness)
376 - Ground connection 11 (in main wiring harness)
410 - Sensor ground connection 1 (in main wiring harness)
640 - Ground connection 2 in engine compartment, left
652 - Transmission/engine ground connection (not shown) - located on Transmission near starter
655 - Ground connection on left headlamp
