Vehicle Electrical System Control Module -J519-, LOW VERSION

If the Vehicle Electrical System Control Module -J519- is to be replaced, the "Replace the vehicle electrical system control module" procedure must always be performed to read out the data stored in the Vehicle Electrical System Control Module -J519-, refer to Vehicle Electrical System Control Module -J519-, REPLACING .

An LHD vehicle is shown in the following figures. The procedure for removing and installing the Vehicle Electrical System Control Module -J519- on a RHD vehicle is identical.

Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the instrument panel cover on the driver side, refer to DRIVER SIDE INSTRUMENT PANEL COVER .

-- Loosen the locking mechanisms -3- and push the Vehicle Electrical System Control Module -J519- -2- downward in the direction of the -arrow-.

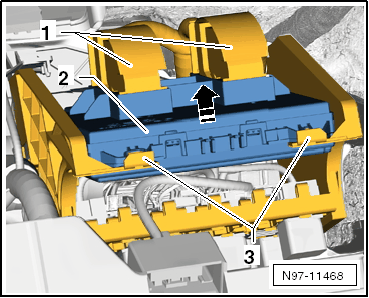

Fig 1: Removing Vehicle Electrical System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors -1-.

Installing

Install in reverse order of removal.
