Front Brakes

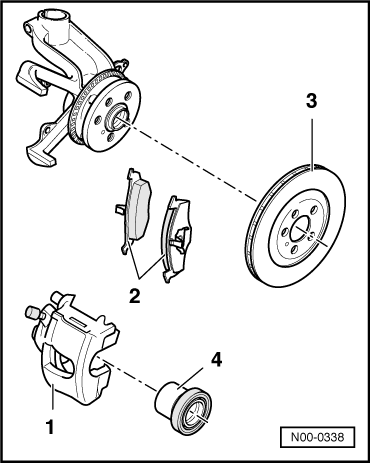

Fig 1: Front Brake Calipers Exploded View (FS III)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1ZM/1ZQ
1	Brake Caliper		FS III (15)
2	Brake pad, thickness	mm	14
	Brake pad, wear limit without back plate	mm	2
3	Brake Rotor	diameter in mm	280
	Brake rotor, thickness	mm	22
	Brake rotor, wear limit	mm	19
4	Brake caliper, piston	diameter in mm	54

Fig 2: Front Brake Calipers Exploded View (FN 3)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1LV/1ZA/1ZB	1ZE/1ZP
1	Brake Caliper		FN3 (16)	FN3 (15)
2	Brake pad, thickness	mm	14	14
2	Brake pad, wear limit without back plate	mm	2	2
3	Brake Rotor	diameter in mm	312	288
	Brake rotor, thickness	mm	25	25
	Brake rotor, wear limit	mm	22	22
4	Brake caliper, piston	diameter in mm	54	54
