Level Control System Indicator Lamps: Abs/EDL/ASR/Esp

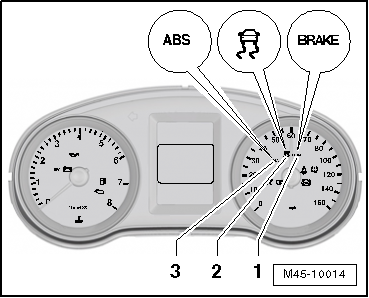

Indicator lamps for USA and Canada
| Item | Designation | |
|---|---|---|
| 1 | Brake System Indicator Lamp -K118- | |
| 2 | ASR/ESP Indicator Lamp -K155- | |
| 3 | ABS Indicator Lamp -K47- | |
ABS Indicator Lamp -K47-
- If ABS Indicator Lamp -K47- -3- does not go out after the ignition is switched on and the test sequence is complete, it could be caused by the following errors:
-a- Voltage supply is under 10 volts.
-b- There is an ABS malfunction, refer to the Vehicle Diagnostic Tester.
The anti-locking brake system remains switched off with an ABS malfunction -3-, but the brake system remains fully operational.
-c- there was a malfunction in the speed sensor since the last time the vehicle was started.
In this case the ABS indicator lamp will go out after the engine is restarted and the vehicle speed exceeds 20 km/h.
-d- Connection from instrument cluster to ABS Control Module -J104- has an open circuit, refer to appropriate System Wiring Diagram Information.
-e- The instrument cluster is defective, refer to the Vehicle Diagnostic Tester.
- If the ABS Indicator Lamp -K47- -3- does not light up during the self-test, check the instrument cluster → perform an electrical test, refer to the Vehicle Diagnostic Tester.
ABS Indicator Lamp -K47- and Brake System Indicator Lamp -K118-
- If ABS Indicator Lamp -K47- -3- goes out but Brake System Indicator Lamp -K118- -1- lights up, the malfunctions causes may be:
-a- parking brake is engaged.
-b- brake fluid level is too low (warning lamp blinks).
Three warning tones will sound after switching on the ignition.
-c- There is a malfunction in the wiring to the Brake System Indicator Lamp -K118-, refer to appropriate System Wiring Diagram Information.
- If the ABS Indicator Lamp -K47- -3- and the Brake System Indicator Lamp -K118- -1- both light up, the ABS system is faulty. A change in braking behavior should be checked.
After ABS Indicator Lamp -K47- and Brake System Indicator Lamp -K118- light up, rear wheels may lock prematurely when braking.
ASR/ESP Indicator Lamp -K155-
- If the ASR/ESP Indicator Lamp -K155- -2- does not turn off after the ignition is switched on and the test sequence is completed, the malfunction may be caused by:
Fault, that affects the ASR/ESP The ABS/EDL and EBD systems on the vehicle remain fully functional, refer to the Vehicle Diagnostic Tester Checking of event memory.
-a- A fault in the actuation of ASR/ESP Indicator Lamp -K155-, refer to appropriate System Wiring Diagram Information.
If the ASR/ESP Indicator Lamp -K155- blinks while driving, the ASR or ESP systems are controlling the system.
- If the ASR/ESP Indicator Lamp -K155- -2- does not light up during the self-test, check the instrument cluster → perform an electrical test, refer to the Vehicle Diagnostic Tester.

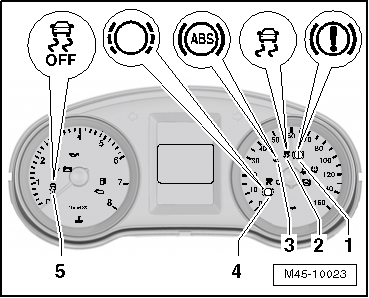

Warning Lamps
| Item | Designation | |
|---|---|---|
| 1 | Brake System Indicator Lamp -K118- | |
| 2 | ASR/ESP Indicator Lamp -K155- | |
| 3 | ABS Indicator Lamp -K47- | |
| 4 | Brake Pad Wear Indicator Lamp -K32- | |
| 5 | ASR/ESP Indicator Lamp 2 -K216- | |
Brake System Indicator Lamp -K118- -1-
- If the warning lamp does not go out after the ignition is switched on, the causes could be:
- If the warning lamp comes on when vehicle is driven, the causes may be:
-a- Parking brake engaged.
-b- Brake fluid level too low, Brake System Indicator Lamp -K118- flashing.
Three warning tones will sound after switching on the ignition.
-c- there is a malfunction in the wiring to the Brake System Indicator Lamp -K118-, refer to appropriate System Wiring Diagram Information.
-d- There is a malfunction in the actuation, refer to the Wiring Diagrams and the Vehicle Diagnostic Tester.
- If the Brake System Indicator Lamp -K118- -1- does not light up during the self-test, check the instrument cluster → perform an electrical test, refer to the Vehicle Diagnostic Tester.
ASR/ESP Indicator Lamp -K155- -2-
- If the ASR/ESP Indicator Lamp -K155- -2- does not turn off after the ignition is switched on and the test sequence is completed, the malfunction may be caused by:
Fault, that affects the ASR/ESP The ABS/EDL and EBD systems on the vehicle remain fully functional, refer to the Vehicle Diagnostic Tester Checking of event memory.
-a- A fault in the actuation of ASR/ESP Indicator Lamp -K155-, refer to the Vehicle Diagnostic Tester.
If the ASR/ESP Indicator Lamp -K155- -2- blinks while driving, the ASR or ESP systems are controlling the system.
- If the ASR/ESP Indicator Lamp -K155- -2- does not light up -3- during the self-test, check the instrument cluster → perform an electrical test, refer to the Vehicle Diagnostic Tester.
ABS Indicator Lamp -K47- -3-
- If ABS Indicator Lamp -K47- -3- does not go out after the ignition is switched on and the test sequence is complete, it could be caused by the following errors:
-a- Voltage supply is under 10 volts.
-b- There is an ABS fault, refer to the Vehicle Diagnostic Tester. Check the event memory.
The anti-locking brake system remains switched off with an ABS malfunction, but the brake system remains fully operational.
-c- there was a malfunction in the speed sensor since the last time the vehicle was started.
In this case the ABS indicator lamp will go out after the engine is restarted and the vehicle speed exceeds 20 km/h.
-d- Connection from instrument cluster to ABS Control Module -J104- has an open circuit, refer to the Wiring Diagrams.
-e- An activation fault has occurred, refer to the Wiring Diagrams and the Vehicle Diagnostic Tester.
- If the ABS Indicator Lamp -K47- -3- does not light up during the self-test, check the instrument cluster → perform an electrical test, refer to the Vehicle Diagnostic Tester.
-f- The instrument cluster is defective, refer to the Vehicle Diagnostic Tester.
ABS Indicator Lamp -K47- -3- and Brake System Indicator Lamp -K118- -1-
- If the ABS Indicator Lamp -K47- -3- and the Brake System Indicator Lamp -K118- -1- both light up, the ABS system is faulty. A change in braking behavior should be checked.
After ABS Indicator Lamp -K47- and Brake System Indicator Lamp -K118- light up, rear wheels may lock prematurely when braking.
Brake Pad Wear Indicator Lamp -K32- -4-
- If the warning lamp does not go out after the ignition is switched on, the causes could be:
- If the warning lamp comes on when vehicle is driven, the causes may be:
-a- Brake pads worn; check brake pads, refer to Maintenance Procedures .
-b- There is a malfunction in the wiring, refer to appropriate System Wiring Diagram Information.
- If the ASR/ESP Indicator Lamp -K155- -4- does not light up during the self-test, check the instrument cluster → perform an electrical test, refer to the Vehicle Diagnostic Tester.
ASR/ESP Indicator Lamp 2 -K216- -5-
- If the ASR/ESP Indicator Lamp 2 -K216- -5- does not go out, causes could be:
ASR malfunction. The ABS/ESP still works, refer to the Vehicle Diagnostic Tester Check the event memory.
-a- A fault in the actuation of ASR/ESP Indicator Lamp 2 -K216-, refer to the Wiring Diagrams/Component Locations.
-b- An activation fault has occurred, refer to the Wiring Diagrams/Component Locations and the Vehicle Diagnostic Tester.
- If the ASR/ESP Indicator Lamp 2 -K216- -5- does not light up during the self-test, check the instrument cluster → perform an electrical test, refer to the Vehicle Diagnostic Tester.
