Installing After Replacing The A-Pillar

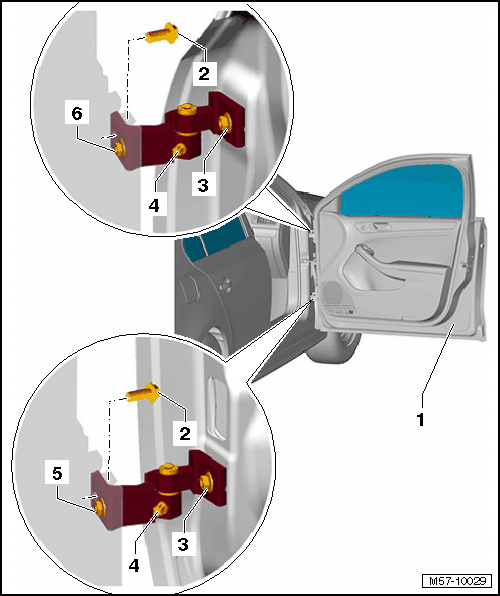

Fig 1: Installing After Replacing A-Pillar

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Perform the following:

• The A-pillar was replaced.
• Always replace the bolts. It is permitted to loosen the bolt just one time when adjusting the door.

Install in reverse order of removal.

-- Install the door -1- and tighten the bolts -2-, -5- and -6- to 20 Nm and 90°.

-- Adjust the door, refer to DOOR ADJUSTMENT .

-- Make sure the front door gap dimensions are correct, refer to Body Repair.
