Control Module For Heat And A/C Components

Removing

-- Read and follow the high voltage electrical system general warnings. Refer to HIGH VOLTAGE SYSTEM GENERAL WARNINGS .

NOTE: The Control Module for Heat and A/C Components is located under the driver seat.

- Loosen the connectors -2-.

- Remove the Control Module for Heat and A/C Components in the -direction of the arrow-.

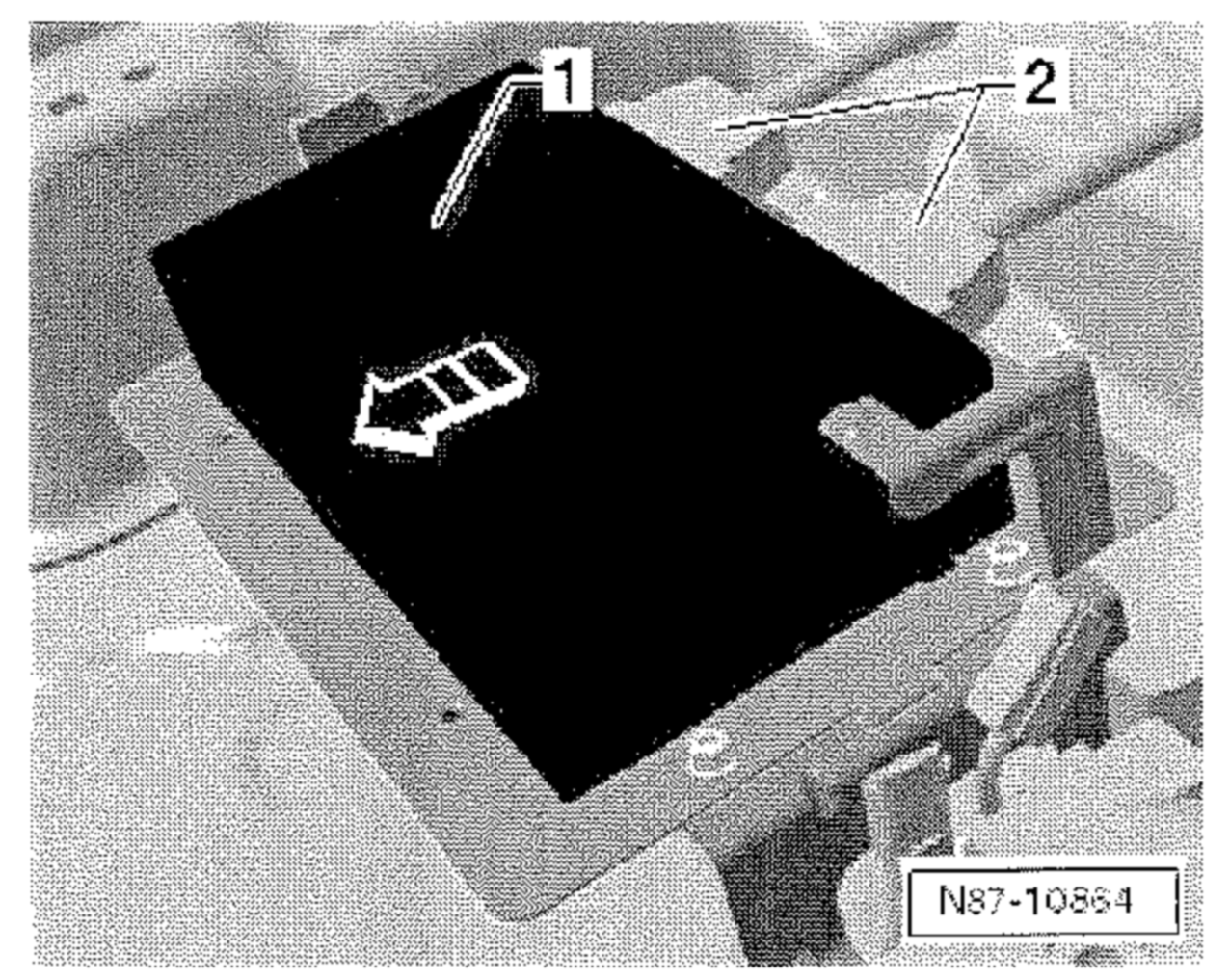

Fig 1: Identifying Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.

- Read and follow the high voltage electrical system general warnings. Refer to HIGH VOLTAGE SYSTEM GENERAL WARNINGS .
