Special Tools

Special tools and workshop equipment required

• 2-Arm Puller 20/10
• Seal Installer Set-Rear Differential 3066
• Thrust Pad 3124
• Slide Hammer-Complete Set VW 771
• Additional Part for VW 771 VW 771/37
• Torque Wrench (5-50 Nm) V.A.G 1331
• Holding Plate VW 309
• Transmission Support VW 353
• Needle Bearing Drift VW 295
• Driving Sleeve VW 244 B
• Hot Air Blower V.A.G 1416
• Support Bridge T10323
• Subframe Support Assembling Device 3253/7
• Thrust Pad Con. 8/65 VW 433
• Thrust Piece 40-105
• Puller T10408
• Plate T10408/3
• Needle Bearing Drift VW 295 A
• Thrust Pad VW 447 H
• Thrust Pad VW 512
• Thrust Tube VW 454
• Press Tube 2040
• Connecting Pin T10027 A
  Fig 1: Identifying Connecting Pin T10027 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clamp Pliers V.A.G 1275
  Fig 2: Identifying Hose Clamp Pliers V.A.G 1275

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Plate T10419
  Fig 3: Identifying Plate T10419

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shackle 10-222 A/12
  Fig 4: Identifying Shackle 10 - 222 A/12

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Block T10083
  Fig 5: Identifying Pressing Support T10083

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• -2- Kukko Puller 65-160 mm 18/1
  Fig 6: Identifying Kukko Tools

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece T10148
  Fig 7: Identifying Thrust Pad T10148

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece T10203
  Fig 8: Identifying Thrust Piece T10203

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Sleeve VW 423
  Fig 9: Identifying Sleeve VW 423

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Assembly Mandrel 10-508
  Fig 10: Identifying Assembly Drift 10 - 508

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Spring Strut Compressor 2070
  Fig 11: Identifying Tensioning Device 2070

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Trim Removal Wedge 3409
  Fig 12: Identifying Wedge 3409

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pry Lever-Rmv Outside Mirror 80-200
  Fig 13: Identifying Pry Lever - RMV Outside Mirror 80-200

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 14: Identifying Special Service Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

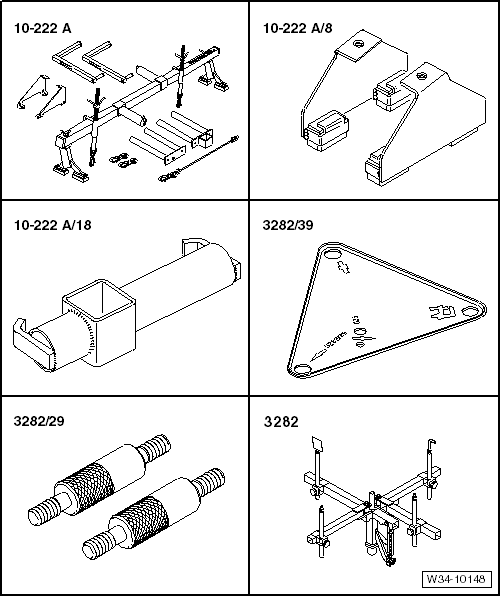

• Engine Support Bridge 10-222 A
• Engine Support Feet 10-222 A/8
• Adapter 10-222 A/18
• Adjustment Plate 3282/39
• Transmission Support 3282

Fig 15: Identifying Special Service Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Engine-/Gearbox Jack V.A.G 1383A
• Support T10036 A or T10036
• Torque Wrench (40-200 Nm) V.A.G 1332
• Engine Support Device 3300 A
• Torque Wrench (5-50 Nm) V.A.G 1331
• Transmission Support Jig 3336

Fig 16: Identifying Special Service Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Bracket 30-211 A
• Driving Sleeve 32-111
• Thrust Piece T10030/4 from Assembly Tool T10030
• Tube 37 mm Dia.VW 416 B
• Puller T10309
• Two Arm Puller T10040 with Puller Legs T10040/2A

Fig 17: Identifying Special Service Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Thrust Plate VW 402
• Thrust Piece 3290/1
• Assembly Tool 3301
• Thrust Pad 16.5/28 mm Dia. VW 431
• Sleeve VW 472/2
• Drift 10-206
