Position of Relays on Lower Vehicle Electrical System Control Module,through October 2009

Relay

Position of Relays on Lower Vehicle Electrical System Control Module,through October 2009

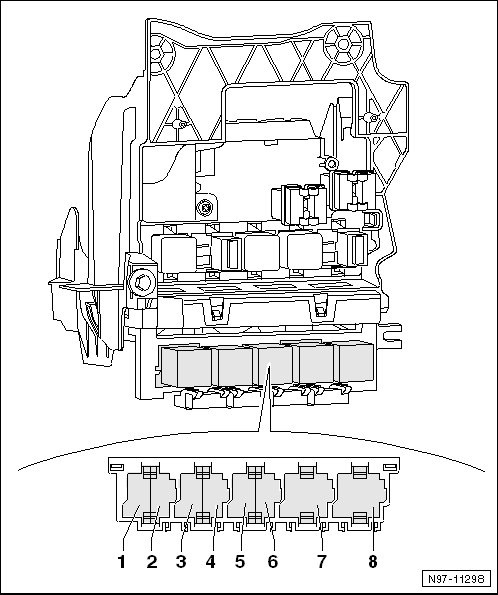

1 Fuel pump relay 2 -J49-
• Connection 1/1
2 Coolant circulation pump relay -J151-
• Connection 1/2
3 Fuel primer relay -J643-
• Connection 2/1
4 Fuel pump relay -J17-
• Connection 2/2
5 Low heat output relay -J359-
• Fuse location 3
6 Auxiliary heater operation relay -J485-
• Fuse location 3
7 High heat output relay -J360-
• Fuse location 4
8 Fresh air blower relay -J13-
• Fuse location 5

Note:
• -J17- and -J151- are minirelays located on a relay connector panel

• -J359- and -J485- are minirelays located on a relay connector panel
