Headlamp Control Module

Control modules in front part of vehicle

Headlamp range control module -J431- , Cornering lamp and headlamp range control module -J745-



Headlamp range control module -J431-







Cornering lamp and headlamp range control module -J745-








Component Location:

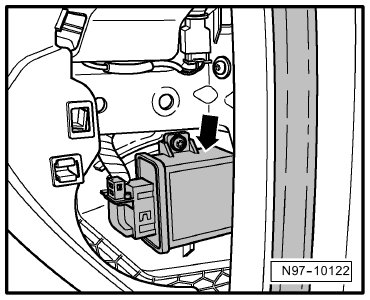

Headlamp range control module -J431- located on the right glove compartment -Arrow-

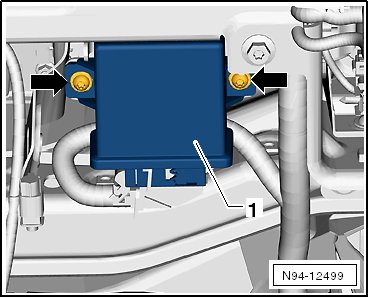

Cornering lamp and headlamp range control module -J745- located behind the glove compartment

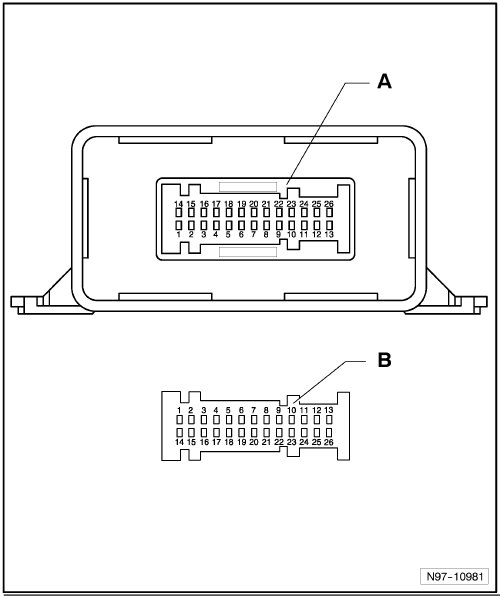

Pin Arrangements:







A - Headlamp range control module -J431-, Headlamp Range/Cornering Lamp Control Module -J745-
Connector:

B - Connector, 26-pin connector -T26b- , 26-pin connector -T26h- on the wiring harness
