Control Module: Locations

Control modules in front part of vehicle

Direct Shift Gearbox (DSG) Mechatronic -J743-

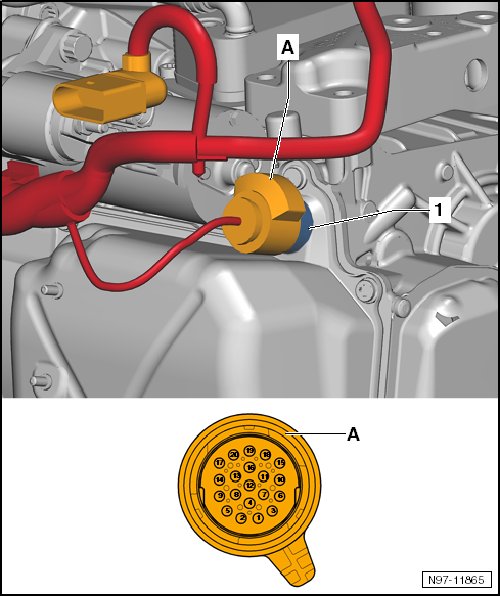

1 Direct Shift Gearbox (DSG) Mechatronic -J743-
Connection on transmission:
• -A20-pin connector -T20e- on the wiring harness
• Illustration be valid for Direct Shift Gearbox 02E
• DSG transmission 0AM 25-pin connector -T25- on the wiring harness
