Control Module: Locations
Control modules in front part of vehicle

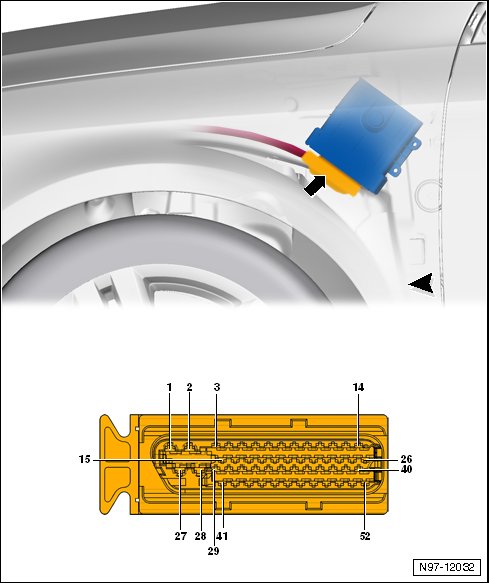

Transmission Control Module (TCM) -J217-
Component Location:
in the left front wheel housing -Arrow-
Pin Arrangements:
- Transmission Control Module (TCM) -J217- -Arrow-
Connector:
52-pin connector -T52-
