Electronic Steering Column Lock Control Module -J764-

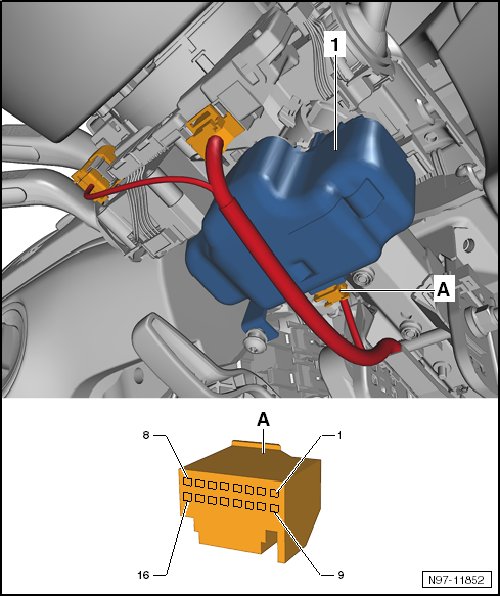

Control modules in front part of vehicle

Electronic Steering Column Lock Control Module -J764-







1 Electronic Steering Column Lock Control Module -J764-
behind the steering column trim
Connector:
• -A16-pin connector -T16s-
