Fresh Air Blower Control Module (J126)

Fresh Air Blower Control Module (J126)

Removing

- Remove the fresh air blower (V2). Refer to => [ Fresh Air Blower (V2), Climatronic ] Fresh Air Blower (V2), Climatronic.

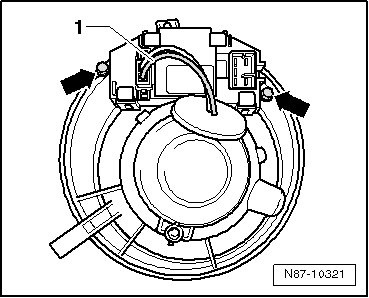

- Disconnect the connector - 1 - from the fresh air blower (V2).

- Remove the bolts - arrows -.

Installing

Install in reverse order of removal.
