Front Seat Heating Control Module -J774-







Control modules in rear part of vehicle

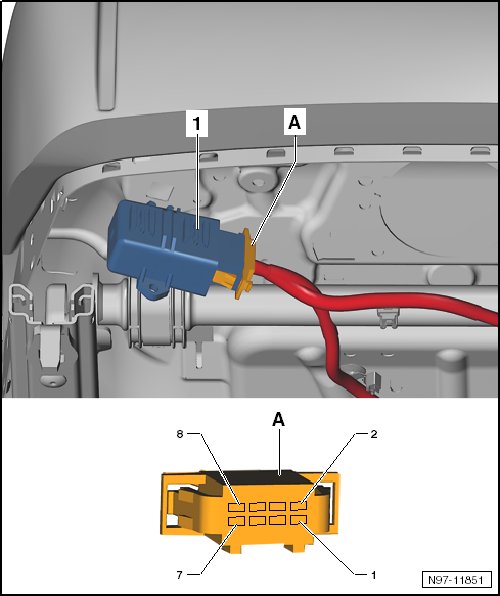

Front seat heating control module -J774-







1 Front seat heating control module -J774-
in the driver seat pan
Connector:
• -A8-Pin Connector -T8-
