Windshield Wiper System: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Passat, 2014 Volkswagen Passat, 2013 Volkswagen Passat, and 2012 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

-- Deactivate the APP function. Refer to WIPER MOTOR CONTROL MODULE, DEACTIVATING ALTERNATING PARK POSITION FUNCTION .

-- Let the wiper return to its park position and then turn off the ignition.

-- Disconnect the battery. Refer to battery in engine compartment BATTERY, DISCONNECTING AND CONNECTING or battery in luggage compartment BATTERY, DISCONNECTING AND CONNECTING .

NOTE:

In order remove the wiper frame with linkage and the Windshield Wiper Motor -V-, wiper arms and plenum chamber cover must be removed.

-- Removing wiper arms, refer to WIPER ARMS

Plenum Chamber Cover, Removing

Plenum Chamber Cover, Removing and Installing, refer to PLENUM CHAMBER COVER .

Wiper Frame with Linkage and Windshield Wiper Motor -V-, Removing

-- Disconnect the connector -1-.

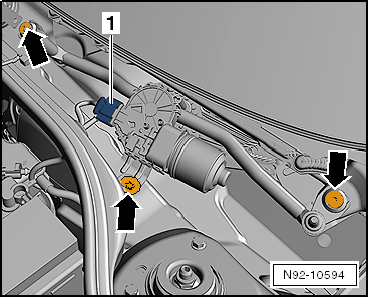

Fig 1: Identifying Connector And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and remove the wiper frame from the vehicle.
