Oxygen Sensor Heater Behind Catalytic Converter, Checking

Special tools and workshop equipment required

• Multimeter.
• Wiring diagram.

Test requirements

• The Oxygen Sensor (O2S) Heater Behind Three Way Catalytic Converter (TWC) -G130- fuse 16 in Fuse Panel B is OK.
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".
• A/C switched off.
• Ground connections between engine/transmission/chassis OK.
• Ignition switched off.

Test procedure

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK

Start diagnosis

-- Remove the right vehicle floor cover -arrows-.

Checking internal resistance

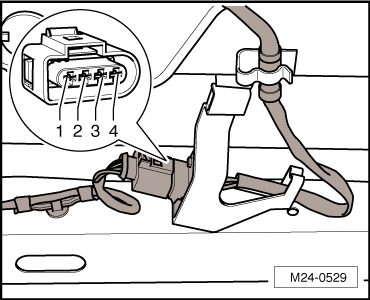

-- Disconnect the Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130- electrical harness connector -arrow-.

-- Using a multimeter, check the Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130- electrical harness connector terminals 1 to 2 for resistance.

Specified value: 1.0 to 20.0 Ω (at approx. 20° C)

If the specified value was Not obtained:

-- Replace the Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) - G130-. Refer to the Repair Information.

If the specified value was obtained:

Checking voltage supply

-- Turn the ignition switch ON.

-- Using a multimeter, check the Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) - G130- electrical harness connector terminal 1 to engine ground.

Specified value: Battery voltage.

-- Turn the ignition switch OFF.

If the specified value was Not obtained:

-- Check the wiring for an open, high resistance, short circuit to each other, or Ground.

-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection and replace fuse if blown.

If the specified value was obtained:

Checking Ground activation

If the manufacturers test box is being used, perform the following step.

-- Install the test box.

If the manufacturers test box is not being used, perform the following step.

-- Remove the Engine Control Module (ECM) -J623-. Refer to the Repair Information.

-- Using a multimeter, check the Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130- electrical harness connector terminal to the Engine Control Module (ECM) -J623- electrical harness connector T94 for an open circuit according to the chart below.

Heated Oxygen Sensor (HO2S) -G130- electrical harness connector terminal	Engine Control Module (ECM) -J623- electrical connector T94 terminal or test box socket
2	7

Specified value: 1.5 Ω max.

If the specified value was Not obtained:

-- Check the wiring for an open or high resistance.

-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring:

-- Replace the Engine Control Module (ECM) -J623-. Refer to the Repair Information.

-- Install the right vehicle floor cover.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
