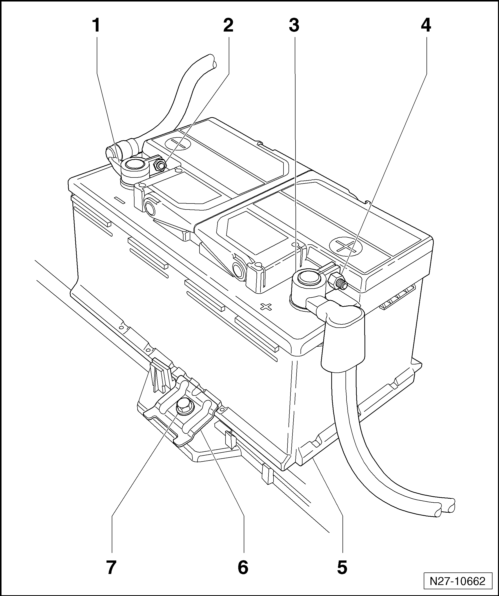

Engine Compartment Overview
Battery post/terminal, refer to BATTERY POST/TERMINAL .
WARNING:
Risk of injury. Refer to WARNINGS AND SAFETY PRECAUTIONS .
CAUTION:
In order to prevent damage to the battery or vehicle, observe battery type descriptions and notes. Refer to BATTERY TYPES .
- Battery Terminal Clamp Ground Wire
- Observe the information regarding the threaded connection of the battery terminals, refer to BATTERY POST/TERMINAL .
- The battery monitoring control module -J367- (battery sensor) is installed on the battery ground cable terminal on vehicles with the Stop/Start System.
- Nut for Battery Terminal Clamp Ground Cable
- 6 Nm
- M6
- Positive Cable Battery Terminal
- Observe the information regarding the battery terminal threaded connections.
- Nut for Positive Cable Battery Terminal
- 6 Nm
- M6
- Battery
- Removal and installation, refer to BATTERY, REMOVING AND INSTALLING .
- Clamp-Down Bracket
- Bolt
- 20 Nm
- M8
No Illustration:
- Bolt, air filter housing to body - 10 Nm
