Windshield Wiper System Overview

Windshield Wiper System Overview

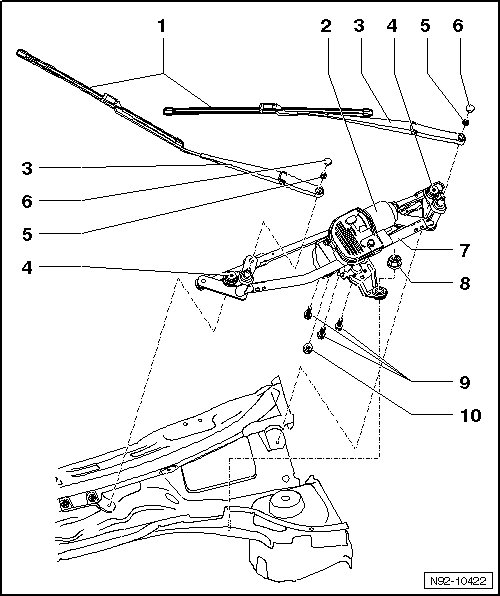

1 Wiper Blades

• Removing and installing, refer to => [ Wiper Blade ] Wiper Blade.

• Wiper blade, removing and installing, refer to => [ Wiper Blade, Replacing ] Wiper Blade, Replacing.

• Park position, adjusting, refer to => [ Windshield Wiper Arms, Adjusting ] Adjustments.

2 Windshield Wiper Motor (V) with Wiper Motor Control Module (J400)

• Removing and installing, refer to => [ Windshield Wiper System, Removing ] Windshield Wiper System, Removing.

• Coding the wiper motor control module/deactivating the APP function => [ Wiper Motor Alternating Park Position Function, Deactivating ] Wiper Motor Alternating Park Position Function, Deactivating.

3 Wiper Arms

• Removing and installing, refer to => [ Windshield Wiper Arm ] Service and Repair.

4 Bolts For Wiper Frame With Linkage To Body

• 8 Nm

5 Mounting Nuts, Wiper Arm To Linkage

• 20 Nm

6 Cover Caps

7 Wiper Frame With Linkage

• Removing and installing, refer to => [ Wiper Frame with Linkage and Windshield Wiper Motor, Removing ] Wiper Frame with Linkage and Windshield Wiper Motor, Removing.

8 Wiper Arm Nut To Body

• 5 Nm

9 Mounting Screws, Wiper Motor To Wiper Frame With Linkage

• 12 Nm

10 Motor Crank Nut On The Wiper Motor Shaft

• 17 Nm
