Piston, Checking

Piston, Checking

Special tools, testers and auxiliary items required

• Micrometer 75-100 mm (VAS 6071)

Test Sequence

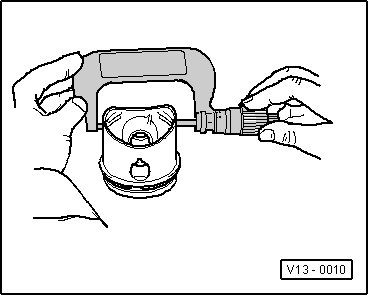

- Take the measurement approximately 15 mm from the lower edge of the piston skirt and offset 90° to the piston axis.






Deviation from nominal dimension: Max. 0.06 mm
