Suspension Control Module

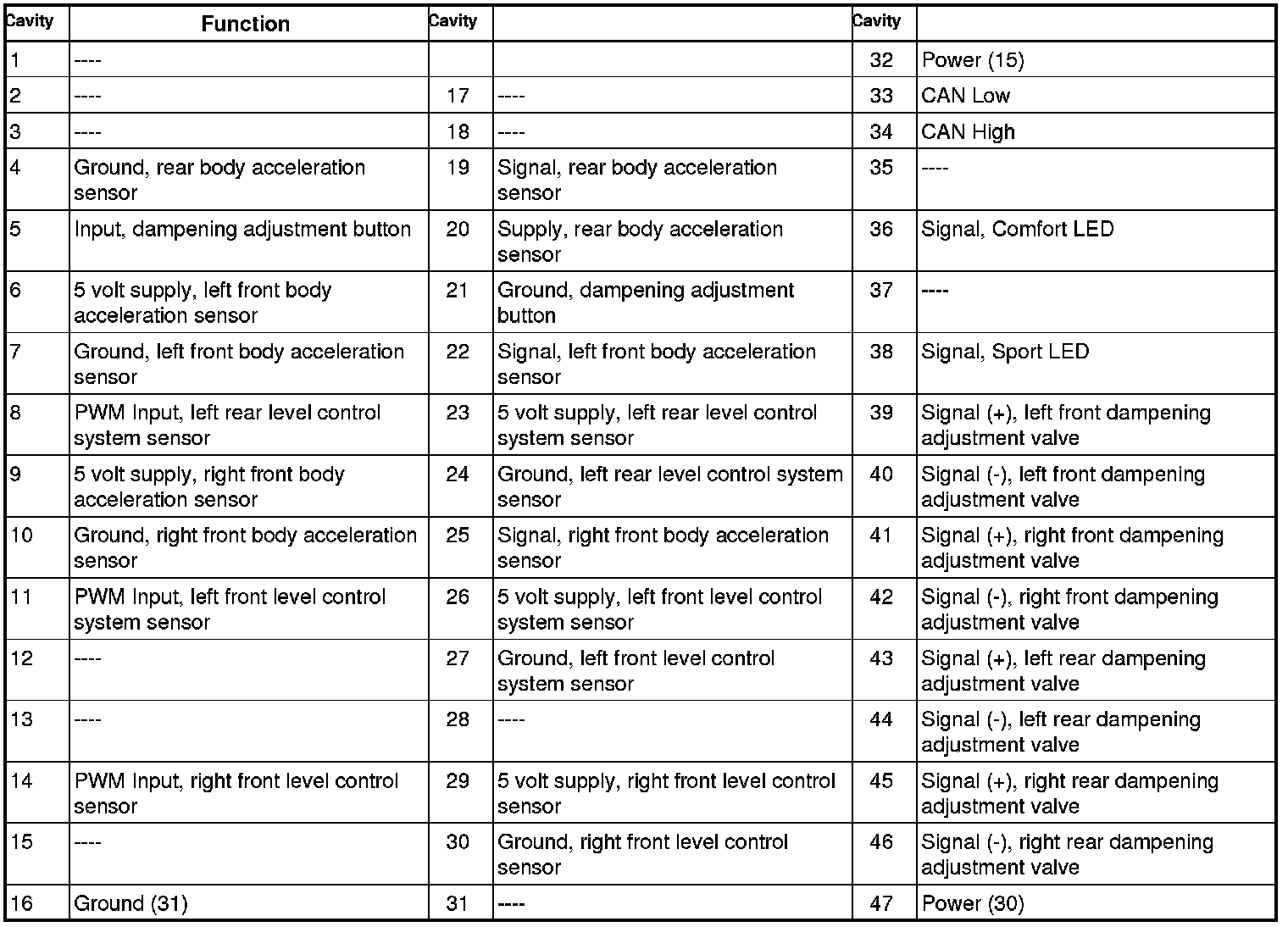

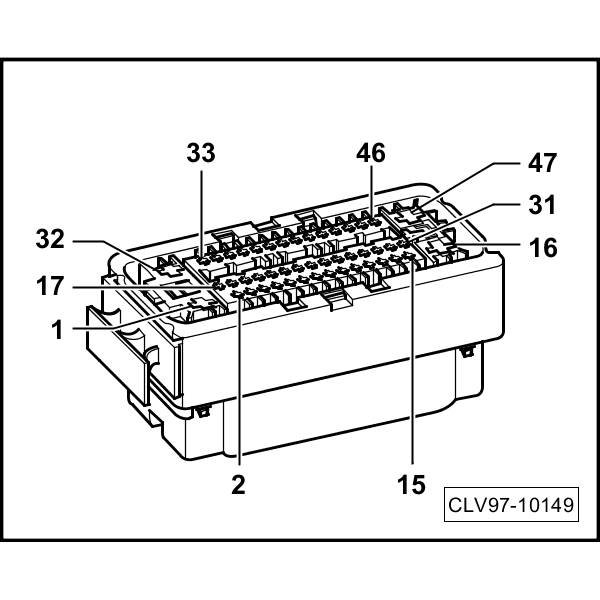

Suspension System - Connector Views
Electronic damping control module -J250-
