Parking Brake Control Module






Parking Systems - Connector Views

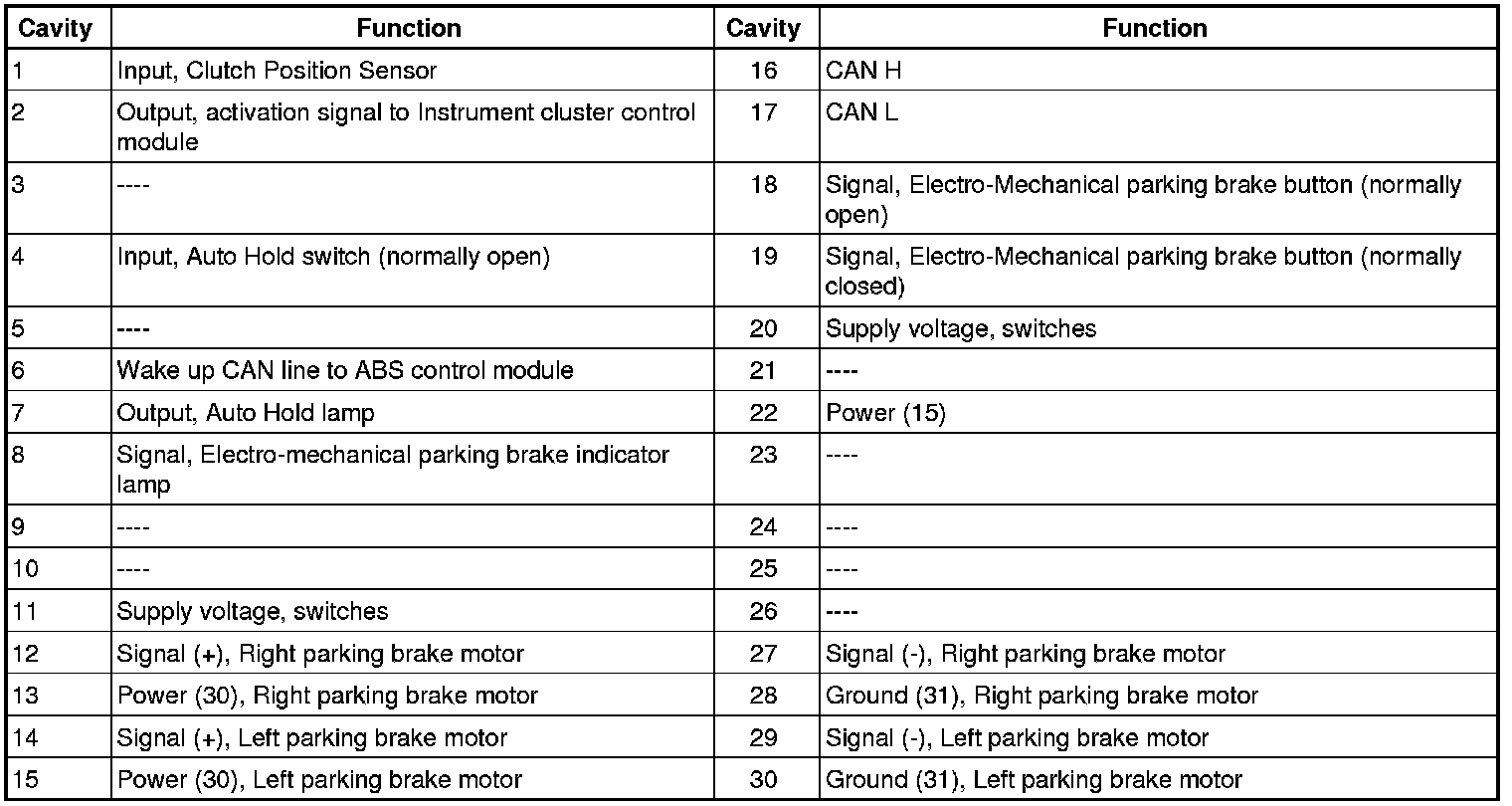

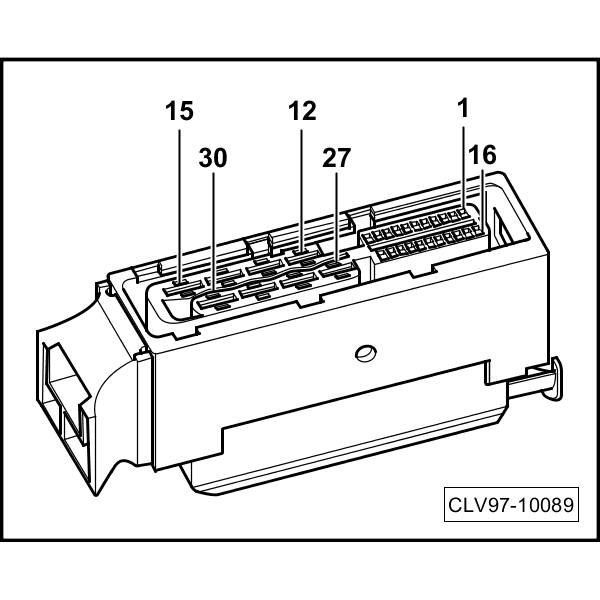

Electromechanical parking brake control module -J540-
