Fuel Pump Control Unit

Control modules in interior

Fuel pump control module -J538-









Component Location:

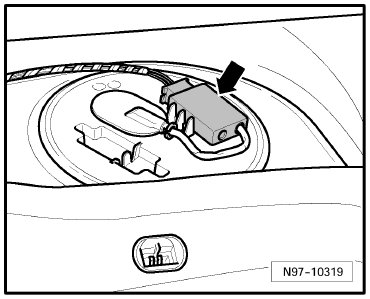

Under the rear seat on the right side, on the fuel delivery unit -Arrow-.


Pin Arrangements:







A - Fuel pump control module -J538-
Connector:

B - 10-pin connector -T10p-
