Sound Proofing / Insulation: Service and Repair

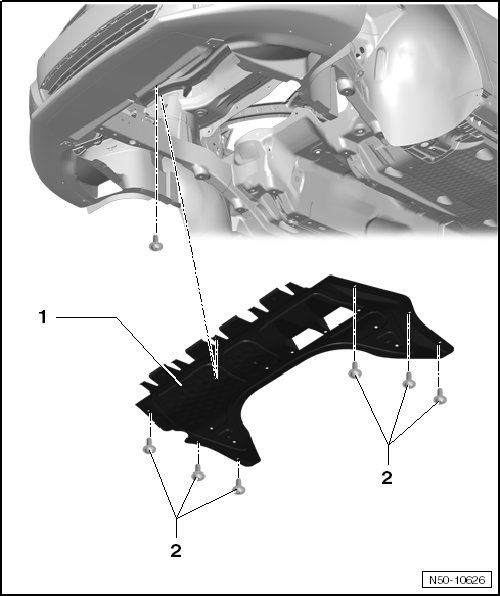

Noise Insulation Assembly Overview

• Slight changes may have to be made to removal and installation procedures, depending upon engine installed in vehicle.






1 Noise Insulation

• Removing:

- Remove the bolts - 2 -.

- Remove the noise insulation toward the rear from out of the mounts in the lock carrier.

2 Bolt

• Quantity: 7

• Tightening specification: 2 Nm
