Transfer Case Identification

The transfer case 0AD is allocated to the automatic transmission 09D.

Off-road reduction gearing is integrated into the transfer case.

Switching between street gearing "HIGH" and off-road gearing "LOW" is accomplished with the transfer case operating unit -E473-.

For code letters, refer to CODE LETTERS, TRANSMISSION ALLOCATION AND CAPACITIES .

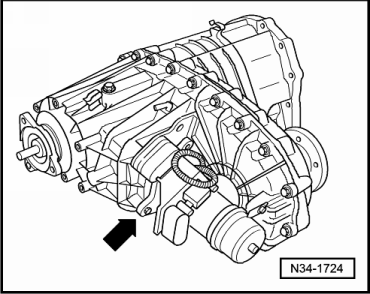

Location on transfer case -arrow-.

Fig 1: Location On Transfer Case

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

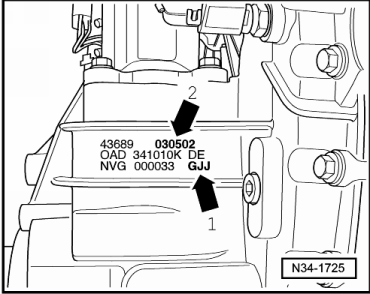

Code letters -arrow 1- and date of manufacture -arrow 2- of transfer case.

Fig 2: Code Letters And Date Of Manufacture Of Transfer Case

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Additional data depends on manufacture.
