Rear Final Drive Identification

The rear final drive 0AB/0AC is allocated to the automatic transmission 09D.

For code letters, refer to CODE LETTERS, TRANSMISSION ALLOCATION, GEAR RATIOS AND CAPACITIES .

Location on rear final drive -arrow-.

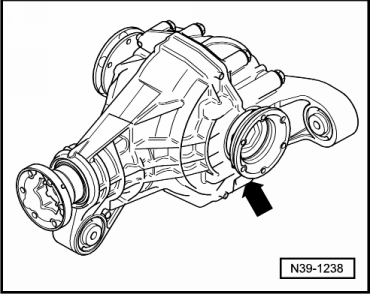

Fig 1: Location On Rear Final Drive

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Code letters and date of manufacture of rear final drive.

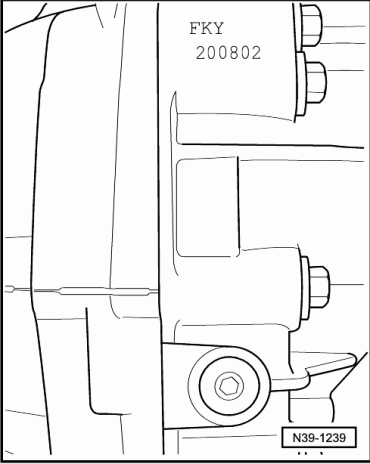

Fig 2: Code Letters And Date Of Manufacture Of Rear Final Drive

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Additional data depends on manufacture.
