Powertrain Overview

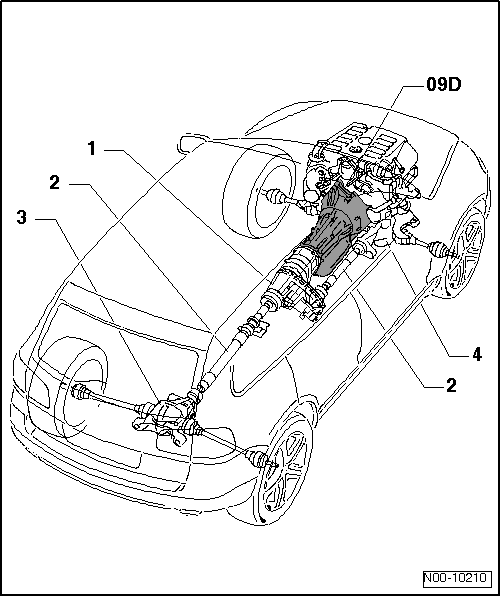

Fig 1: Drivetrain Guide, Overview
GWWN00-10210Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Transfer case
  2. Driveshaft
  3. Rear final drive
  4. Front final drive
