Special Tools

Special tools and workshop equipment required

• Engine and transmission jack VAG 1383 A with universal transmission adapter VAG 1359/2
• Holding fixture VW 313
• Punch VW 408 A
• Engine and transmission holder VW 540
• Thrust pad 30-504
• Tube 32-119
• Kukko 17/2 Separating device
• Retainer 3145

Fig 1: Identifying Special Tools -- Differential, Removing And Installing (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

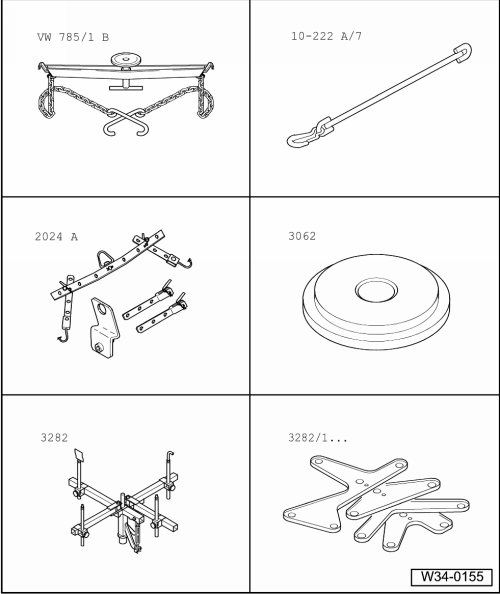

Special tools and workshop equipment required

• Transmission support VW 785/1B
• Adapter 10-222 A /7
• Lifting tackle 2024 A
• Thrust pad 3062
• Transmission support 3282
• Adjustment plate 3282/37

Fig 2: Identifying Special Tools -- Bonded Rubber Bushing In Transmission Carrier, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

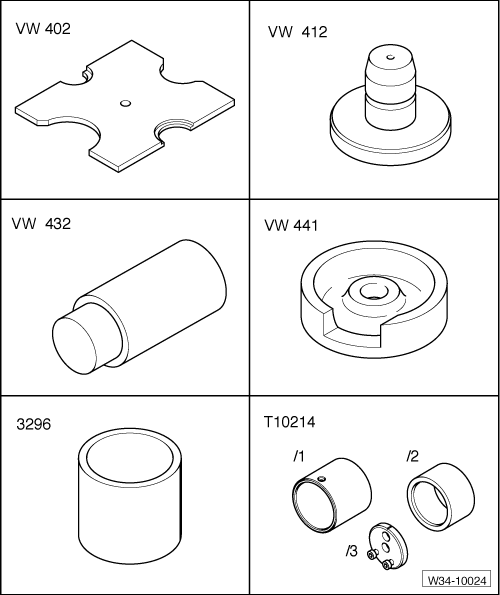

Special tools and workshop equipment required

• Pressure plate VW 402
• Punch VW 412
• Thrust piece VW 432
• Base block VW 441
• Tube 3296
• Alignment fixture T10214

Fig 3: Identifying Special Tools -- Seals For Output Flange/Driveshaft And Differential Motor, Removing And Installing (3 Of 3)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Thrust piece T10185
• Thrust piece T10203
• Socket T10204
• Wiring harness repair kit VAS 1978

Fig 4: Identifying Special Tools -- Input Shaft Seal, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Puller T10055
• Adapter T10055/2
• Thrust piece T10184
