Transfer Case Transporting

Special tools and workshop equipment required

• Adapter 10-222 A /7
• Engine sling 2024 A

-- Attach the engine sling 2024A as follows to the lifting eyes of the transfer case and transport using a workshop crane.

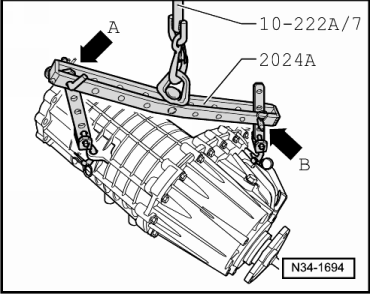

Fig 1: Identifying Engine Sling 2024A, Lifting Eyes Of Transfer Case And Transport With Workshop Crane

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Input shaft side:

4. Hole for hook in position 1 of the engine sling -arrow A-.

Output shaft side (driveshaft flange):

2. Hole for hook in position 8 of the engine sling -arrow B-.
