Special Tools

Special tools and workshop equipment required

• Vehicle Diagnostic Tester
• ATF Filler Pipe V.A.G 1924/1
• Scissor Lift Table VAS 6131
• Basic Set VAS 6131/1 VAS 6131/1
• Counterhold Tool Touareg V10 T10172
• Counter Hold Tool 3435
• Lifting Tackle 3033
• Torque Wrench (5-50 Nm) V.A.G 1331
• Socket and Key T40031
  Fig 1: Socket And Key T40031

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench (5-60 Nm) V.A.G 1783
  Fig 2: Identifying Torque Wrench V.A.G 1783

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece T10174
  Fig 3: Identifying Thrust Piece T10174

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Used Oil Collecting and Extracting Device V.A.G 1782
  Fig 4: Identifying Oil Extractor V.A.G 1782

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Adapter for Oil Filling VAS 6262 A
  Fig 5: Adapter For Oil Filling VAS 6262 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 6: Identifying Special Tools -- Transmission, Transporting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

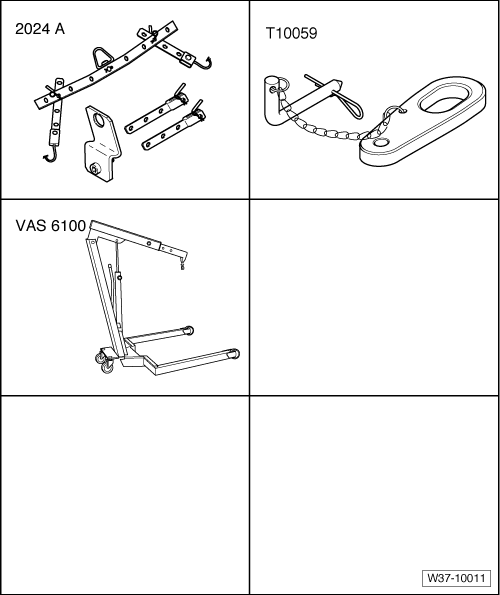

• Engine Sling 2024 A
• Shackle T10059
• Shop Crane VAS 6100

Fig 7: Identifying Special Tools -- ATF Level, Checking

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Drip Tray V.A.G 1306
• Torque Wrench (5-50 Nm) V.A.G 1331
• Torque Wrench (40-200 Nm) V.A.G 1332
• ATF Filler Tool V.A.G 1924
• Vehicle Diagnostic, Testing, and Information System VAS 5051

Fig 8: Identifying Special Tools -- Starter Needle Bearing, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Kukko extractor 14.5-18.5 mm 21/2 or a similar commercially available puller.
• Kukko Support 22/1 or a similar commercially available support.
• Adapter from the Slide Hammer - Complete Set VW 771
• Adapter VW771/44
• Centering Mandrel 12 - 551

Fig 9: Identifying Special Tools -- Output Shaft Seal, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

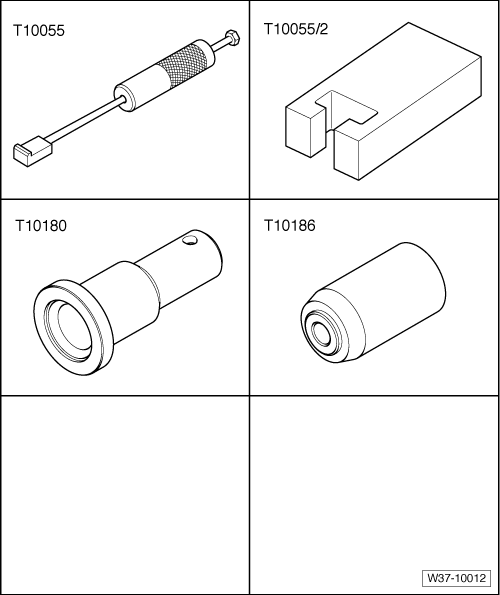

• Puller T10055
• Adapter T10055/2
• Press Tool for Shaft Seal T10180
• Sleeve for Shaft Seal T10186
