Transmission Identification

The Touareg is equipped with the 6 speed automatic transmission 09D All Wheel Drive (AWD). Allocation, refer to TRANSMISSION ALLOCATION .

The transmission code letters are shown on the type plate on the lower left of the transmission.

Example

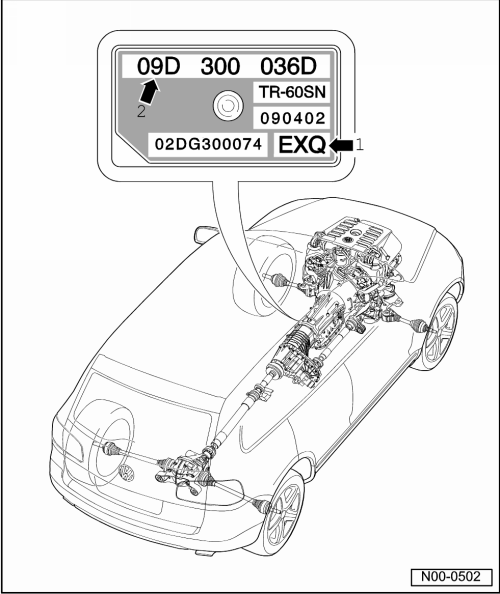

Fig 1: Identifying Transmission Identification

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Code
2. 6 Speed Automatic transmission 09D AWD

   The transmission code is also indicated on the vehicle data stickers.
