| Belt Pulley to Power Steering Pump Bolt |
| - 6-Cylinder Diesel |
- |
22 |
| - Gasoline Engine |
- |
25 |
| Control Line Backing Plate Bolt |
- |
12 |
| Control Line to Steering Gear |
- |
7 |
| Drive Flange and Hard Rubber Disc Bolt, 10-Cylinder Diesel |
- |
14+ 45° |
| Handle to Steering Column Bolt |
M5 x 8 |
4.5 |
| Oil Cooler to Radiator |
- |
9 |
| Power Steering Line Union Fitting |
- |
30 |
| Power Steering Line to Steering Gear Retaining Bolt |
M6 x 12 |
9 |
| Power Steering Pump to Bracket Bolt- |
| - 6-Cylinder Diesel, from MY 2009 |
- |
22 |
| - Gasoline Engine |
- |
25 |
| Power Steering Pump Mounting Bolt, 10-Cylinder Diesel |
- |
20 |
| Pressure Line to Power Steering Pump Bolt, 6-Cylinder Diesel, from MY 2009 |
- |
9 |
| Pressure Line to Power Steering Pump Banjo Fitting |
| - Gasoline Engine |
- |
40 |
| - 10-Cylinder Diesel |
- |
35 |
| Shield to Steering Gear Bolt |
M6 x 16 |
10 |
| Steering Column Protective Boot Nut |
M6 |
4 |
| Steering Column to Lateral Control Arm Bolt2 |
M8 x 28 |
20 |
| Steering Column to Lateral Control Arm Nut1 |
M8 |
20 |
| Steering Column U-Joint to Steering Gear Bolt1 |
M10 x 35 |
40 + 90° turn |
| Steering Gear to Subframe Bolt1 |
M12 x 1.5 x 80 |
90 + 90° turn |
| Suction Line to Cylinder Block Mounting Bolt, 10-Cylinder Diesel |
- |
9 |
| Suction Line to Power Steering Pump Bolt, 10-Cylinder Diesel |
- |
10 |
| Tie Rod to Steering Gear |
- |
100 |
| Tie Rod End to Tie Rod Nut |
- |
70 |
| Tie Rod End to Wheel Bearing Housing Nut1 |
M14 x 1.5 |
90 |
- 1
Always replace after removal.
- 2

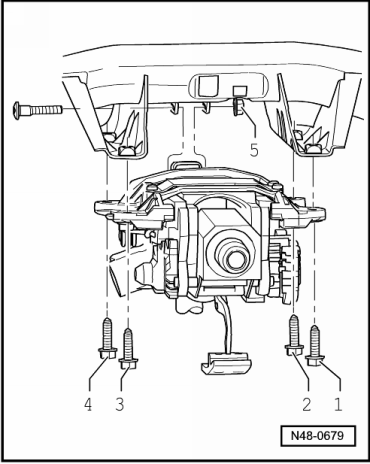

Observe tightening sequenceFigure
|
