Vehicle Data Label

Instrument Panel Location

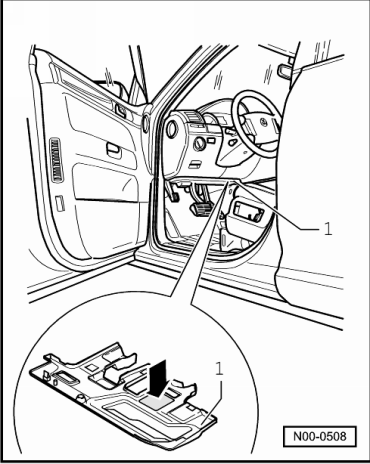

Fig 1: Identifying Vehicle Data Sticker

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The vehicle data label -arrow- is located on the rear of the instrument panel lining. The vehicle data label is also inside the customer Maintenance booklet.

Left hand drive vehicles on left side, right hand drive vehicles on right side.

Spare Wheel Well Location

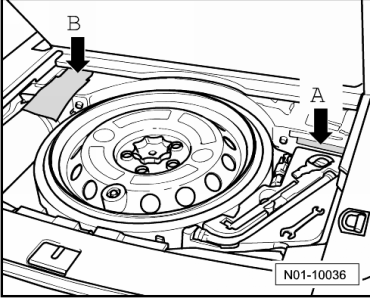

Fig 2: Locating Vehicle Data Sticker (Spare Wheel Well)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The vehicle data sticker -arrow- is located in rear of vehicle on the left by the spare wheel recess.

Contents of Vehicle Data Label

The label contains the following vehicle data:

Fig 3: Identifying Details Of Vehicle Data Label

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - VIN

2 - Vehicle model, engine output, transmission

3 - Engine and transmission codes, paint code, interior equipment

4 - Optional equipment, PR numbers

The label inside the customer Maintenance booklet contains the same information. The legend is under the label.

Fig 4: Identifying Customer Maintenance Booklet Label

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
